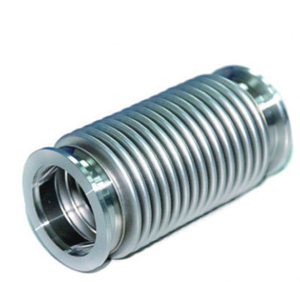

Vacuum Metal Hose

       The metal hose for vacuum is composed of bellows and small flange according to the standard of DIN28403 through TIG welding, and it’s used widely in highly specialized vacuum field. The features such as high flexibility, corrosion resistance, the quickness and convenience of assembling and disassembling, reliable sealing performance, make it a necessary pipe fitting in vacuum equipment, laboratory and test equipment. The small flange also can be produced according to the standard of GN6071.2-85.

Max Working Pressure: 0.2MPa

Max Working Temperature: 300℃

Leakage Rate: <10^-3 Torrl /s

Material: Stainless Steel 304
