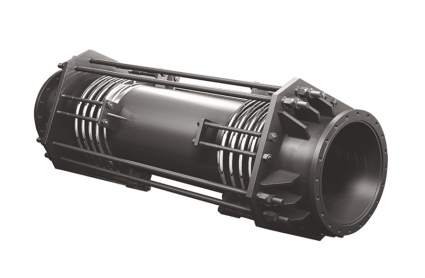

Tied Universal Expansion Joints
Item Code: HL type
Nominal Diameter: DN100-DN4000mm
Direction of Movement: Axial
Working Pressure(MPa): 0.1, 0.25, 0.5, 0.6, 1.0, 1.6, 2.5
End Fittings: Fixed Flange or Weld End
Bellows Material: Stainless Steel 304, 304L, 316, 316L, Incoloy 800H/825, Inconel 600/625
Flanges and Weld Ends: Carbon Steel or Stainless Steel
Tied Universal Expansion Joints
Features
The expansion joint comprises two bellows and large rods and ring plates. Upon pipe displacement, the spherical nut on the rod will move around the spherical washer. It can absorb lateral offset in any direction within the transverse plane. The rod bears an internal pressure thrust. It is mostly applied in thermal compensation for p-shaped, L-shaped, Z-shaped, and 3D Z-shaped pipelines.

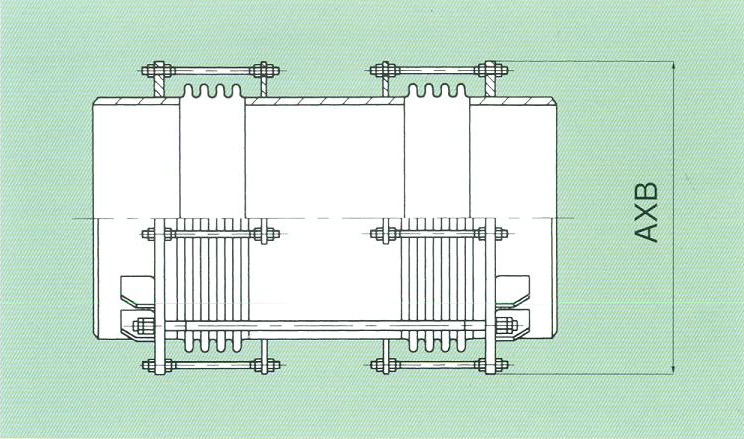

Drawing or Sketch

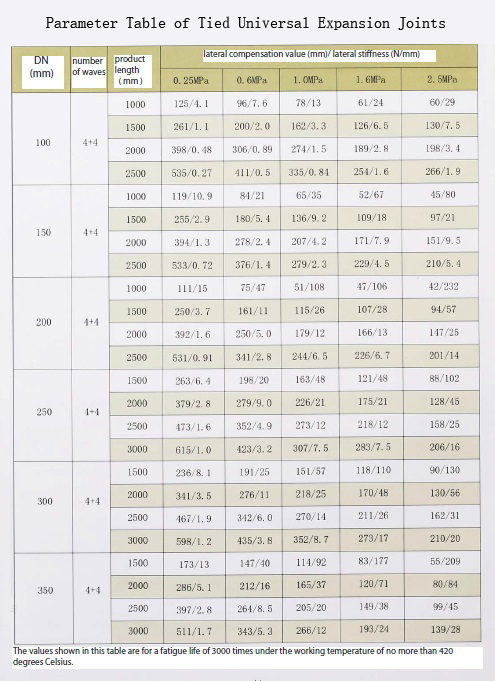

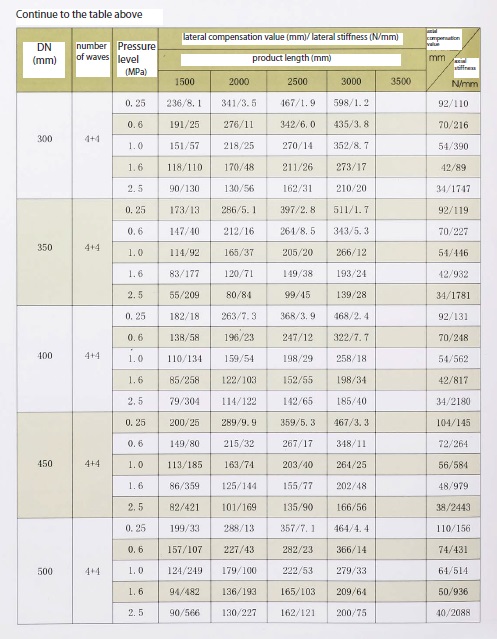

Parameters
