Single Expansion Joints
Item Code: T type
Nominal Diameter: DN40-DN7000mm
Direction of Movement: Axial, Lateral, Angular
Working Pressure(MPa): 0.1, 0.25, 0.5, 0.6, 1.0, 1.6, 2.5
End Fittings: Fixed Flange or Weld End
Bellows Material: Stainless Steel 304, 304L, 316, 316L, Incoloy 800H/825, Inconel 600/625
Flanges and Weld Ends: Carbon Steel or Stainless Steel

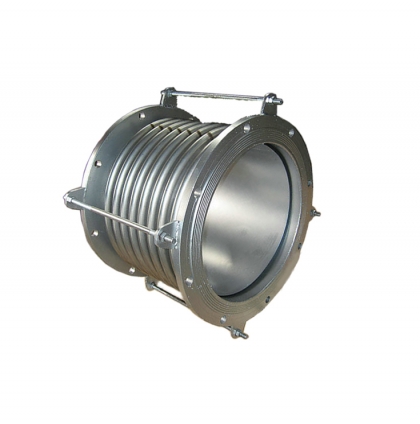

Single Expansion Joints
Features
The expansion joint comprises one bellow and two connecting pipes (flange is also available). The bellow’s flexible deformation is to absorb pipe axial displacement as well as angular and lateral displacements to a certain extent. The connecting pipes (or flanges) are connected to the pipeline. Screws are rigid support for transport which can be removed after installation is complete. This product is widely applied.

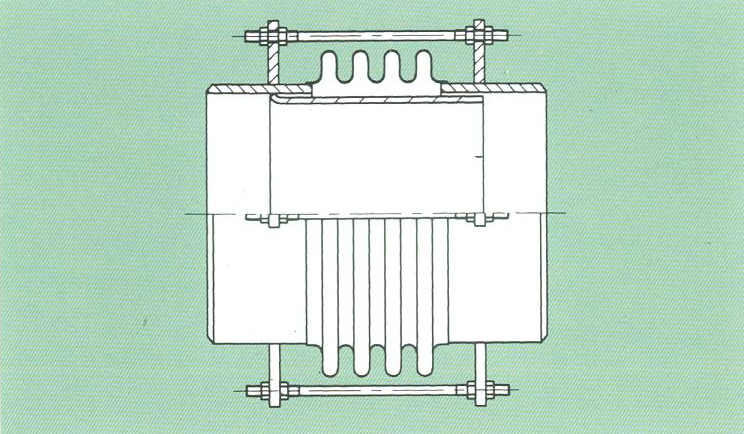

Drawing or Sketch

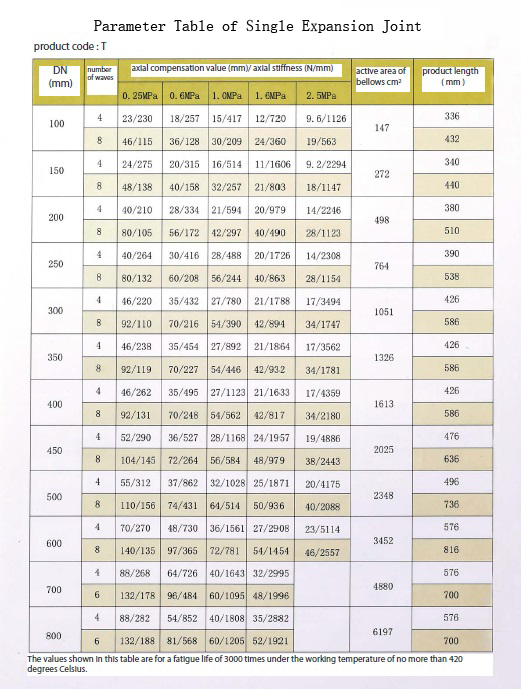

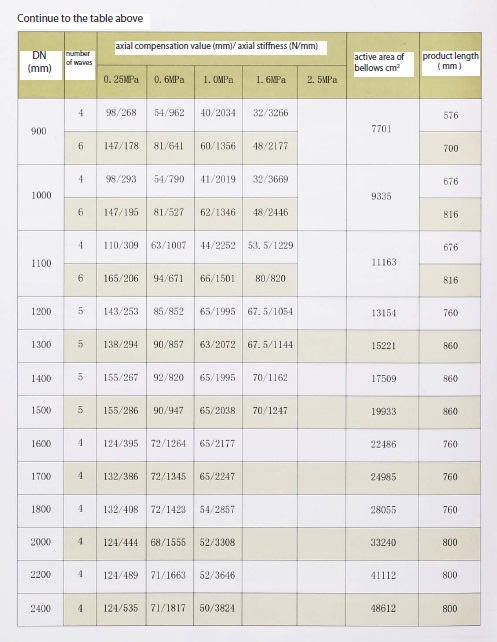

Parameters
