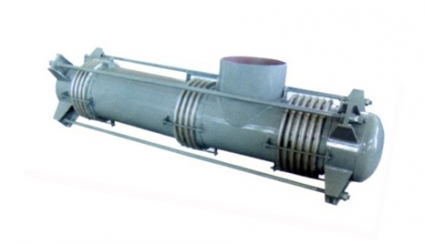

Elbow Pressure Balanced Expansion Joints
Item Code: QP type
Nominal Diameter(mm): DN700-DN2000mm
Direction of Movement: Axial, Lateral
Working Pressure(MPa): 0.1, 0.25, 0.5, 0.6, 1.0
End Fittings: Fixed Flange or Weld End
Bellows Material: Stainless Steel 304, 304L, 316, 316L, Incoloy 800H/825, Inconel 600/625
Flanges and Weld Ends: Carbon Steel or Stainless Steel
Elbow Pressure Balanced Expansion Joints
Features
The expansion joint comprises of pipe tee, blind plate, rod and three bellows with the same diameter. Two working bellows are mounted to the front end of medium output to absorb lateral offset of pipelines; the blind plate has one balancing bellow to absorb axial displacement of pipelines; and the rod is to withstand pressure thrust. It is applicable to L type, Z-type, and 3D Z-type pipelines, in particular, turbines, compressors, pumps, and tank exits. It is to reduce the pressure thrust and damage forces to the above-mentioned equipment.

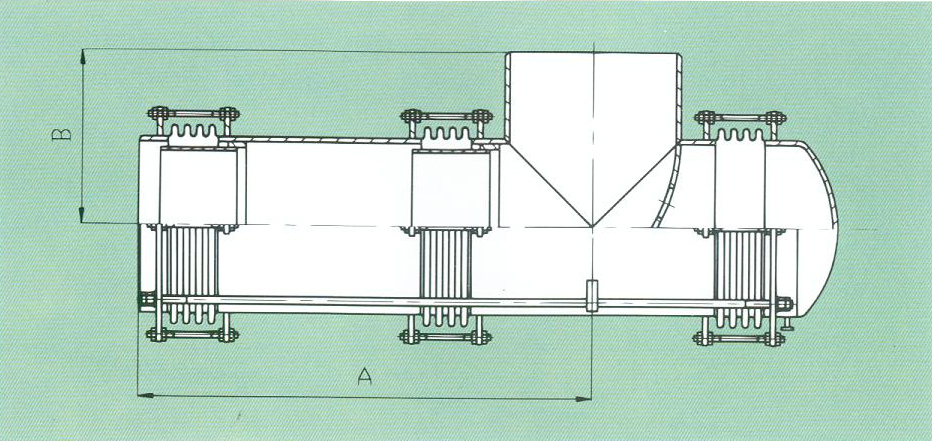

Drawing or Sketch

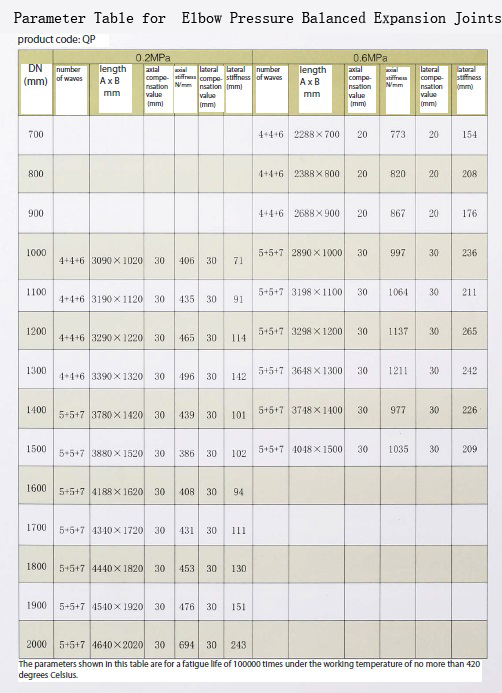

Parameters
