CE Standard Power Station Boiler Flue Expansion Joints
Item Code: JE type
Nominal Diameter: Size Unlimited
Direction of Movement: Axial, Lateral, Angular
Working Pressure(MPa): 0.1, 0.25, 0.5
End Fittings: Fixed Flange or Weld End
Bellows Material: Stainless Steel 304, 304L, 316, 316L, Incoloy 800H/825, Inconel 600/625
Flanges and Weld Ends: Carbon Steel or Stainless Steel
CE Standard Power Station Boiler Flue Expansion Joints
Features
The expansion joint designed and manufactured with reference to Combustion Engineering (CE)’s technical standards. Most of such expansion joints are rectangular with four rounded transition corners which make effective working area larger. The waveform includes V shape and U shape. The wave height includes 216mm and 108mm. A single wave has less stiffness but larger axial compensation. Supplemented by a variety of members, it can compensate angular and lateral offset. It is mostly applied in utility boiler air flues as well as large-sectional air flues in smelting, chemical, cement and other industries.

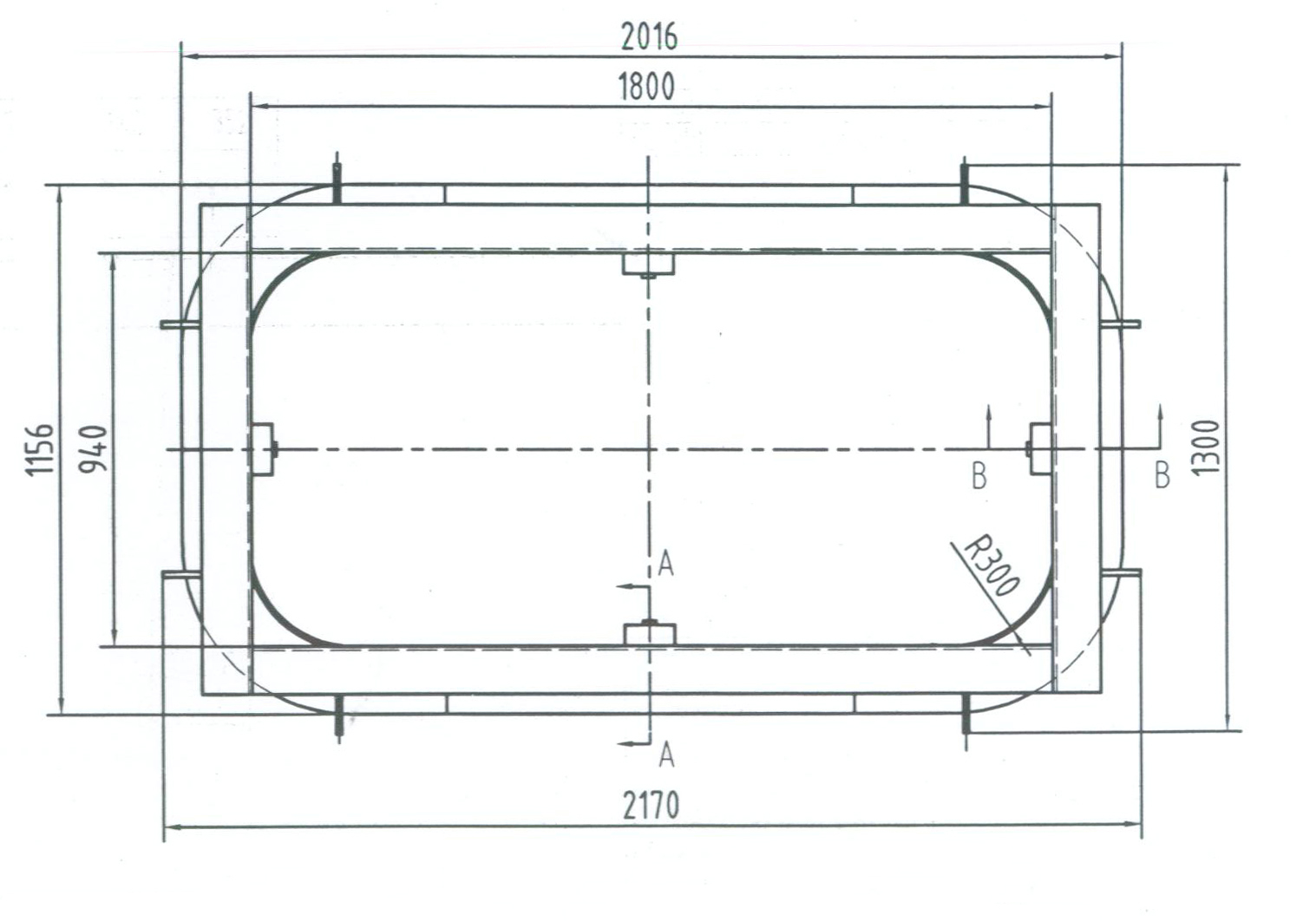

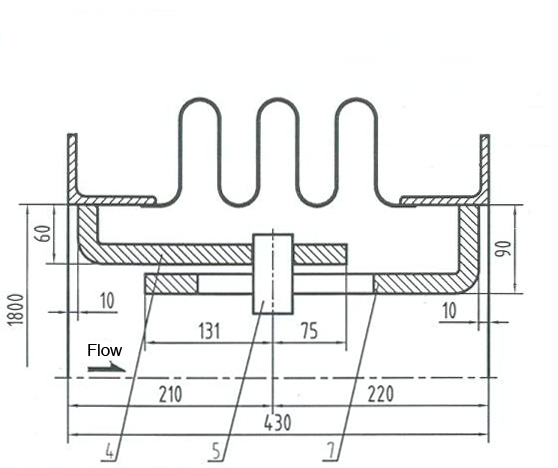

Drawing or Sketch
Parameters
