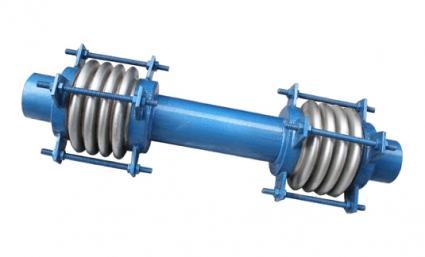

3-Way Coal Pulverizer Metal Expansion Joint
Item Code: JSW type
Nominal Diameter: DN100-DN4000mm
Direction of Movement: Axial, Lateral, Angular
Working Pressure(MPa): 0.1, 0.25, 0.5, 0.6, 1.0, 1.6, 2.5
End Fittings: Fixed Flange or Weld End
Bellows Material: Stainless Steel 304, 304L, 316, 316L, Incoloy 800H/825, Inconel 600/625
Flanges and Weld Ends: Carbon Steel or Stainless Steel
3-Way Coal Pulverizer Metal Expansion Joint
Features
The expansion joint is applicable to the connection between large-scale thermal power units’ boiler burners and pulverized coal pipeline. It is greatly competent to absorb lateral offset in any direction and a certain amount of axial displacement. The members are all made of wear-resistant low-carbon alloy steels. A secondary seal by soft sealing materials is applied between pulverized coal pipes, outer sleeves, and bellows.

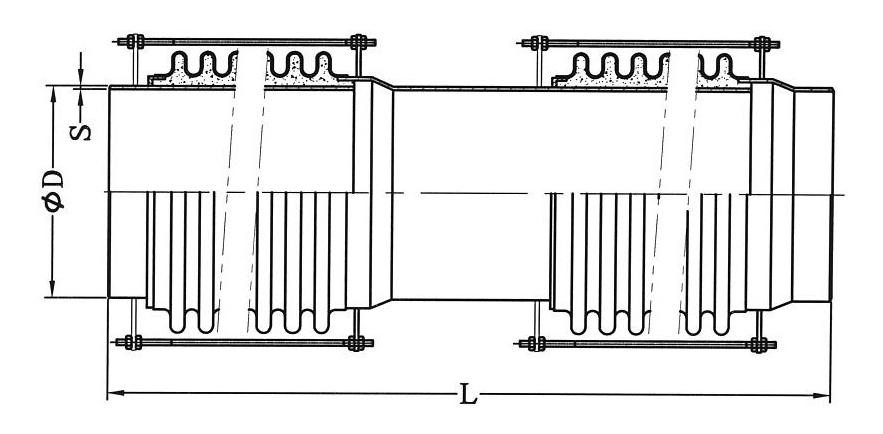

Drawing or Sketch

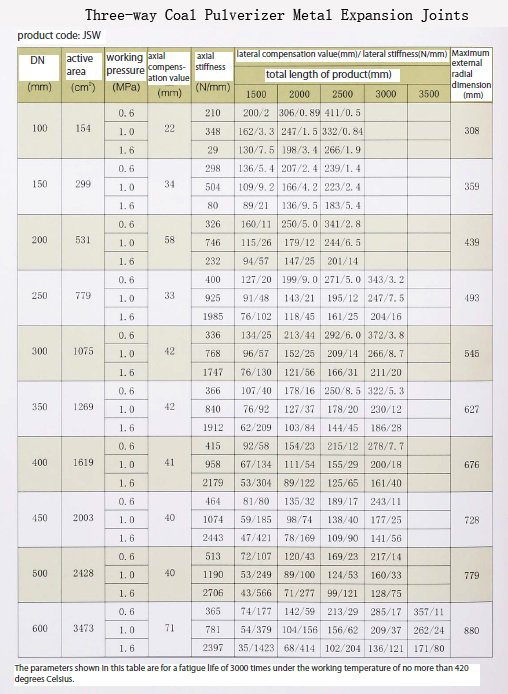

Parameters
